The environmentally friendly comprehensive fire protection concept

Competence, responsibility and sustainability in fire protection with our Green Generation.

One of the essential pillars of our environmentally conscious green philosophy is formed by environmentally compatible or at least environmentally friendly extinguishing agents that allow for easy and ecologically sound disposal.

The "Green Generation" fire extinguisher series was created under this important guiding principle. We are continuously developing and expanding this range, enabling our customers to choose from a variety of environmentally friendly alternative extinguishing agents for firefighting.

Powerful and environmentally friendly - our specially developed extinguishing agents. Jockel foam, water, water mist and gel fire extinguishers from the Green Generation series are free of added fluorosurfactants and solvents. Furthermore, they do not contain any PBT substances - i.e. substances that are persistent, bioaccumulative or toxic.

With fire extinguishers from the Green Generation series, you can extinguish in an environmentally friendly and effective way and at the same time make an important contribution to sustainability in fire protection.

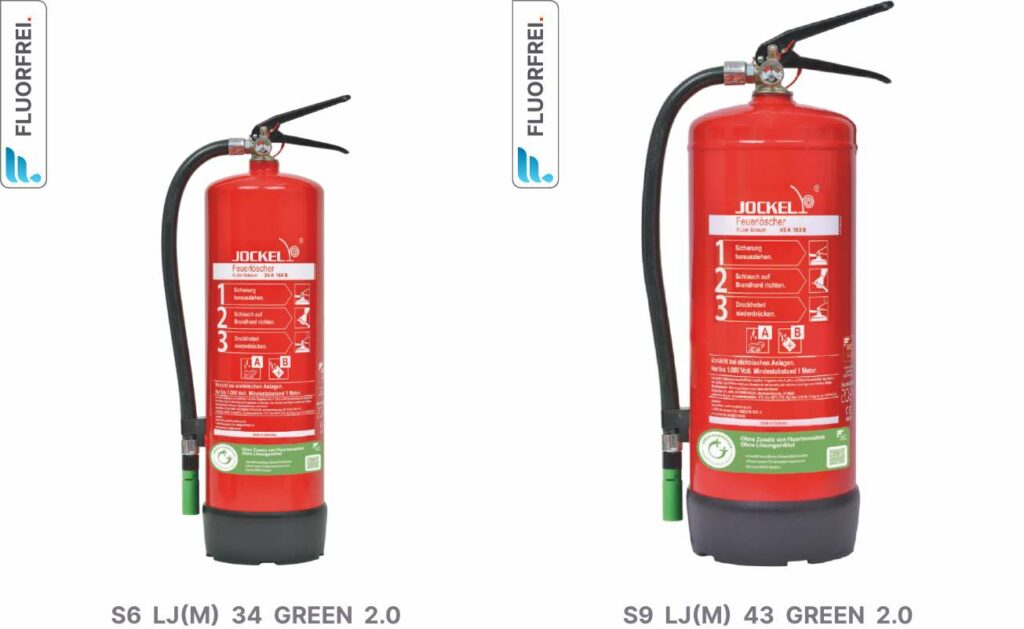

Foam extinguishers Green Generation

Jockel foam fire extinguishers from the Green Generation series, without added fluorosurfactants and solvents, can be used for incipient fires of fire class A of ember-forming substances, but also for incipient fires of fire class B.

Since foam can be removed later with virtually no residue, it is ideal for living areas, sales spaces or administrative areas. This makes it suitable for a wide range of applications while having a low impact on the environment.

Due to their low specific density, water film-forming foam agents are able to form a closed vapour-tight and aqueous film on the surface of the burning material, even in the case of burning liquids. This barrier layer prevents the escape of vapours and gases. In this way, the oxygen supply to the burning material is cut off and the fire is smothered. In addition, foam has a cooling effect due to its water content.

S6JX Green E27

Cartridge operated extinguisher GREEN E

  • High extinguishing comfort thanks to an extinguishing pistol that can be placed down
  • Proven charging technology for long service life
  • without addition of fluorosurfactants and without solvents
  • Fire classes A and B
  • Suitable for electrical systems under voltage (up to 1,000 volts)
  • „Made in Germany“

S 50 J AR Externa GREEN

Rechargeable foam fire extinguisher GREEN E mobile

  • Ideal when large quantities of extinguishing agent are required due to high fire risk
  • Practical one-man operation
  • Manoeuvrable chassis for use in confined spaces
  • With castors for better manoeuvrability
  • Proven charging technology for high durability
  • Separately replaceable CO2 propellant gas cylinder
  • without addition of fluorosurfactants and without solvents
  • without AFFF
  • 100 % lösungsmittelfrei
  • Fire classes A and B
  • additionally applicable for fires of polar substances (alcohols)
  • „Made in Germany“

Mobile Line

Extinguishing containers

  • Possible alternative to stationary extinguishing systems
  • High extinguishing capacity, compact dimensions
  • Fit through the smallest DIN door
  • High quality extinguishing agents
  • Operates in only 3 steps

Zum Schutz unseres Wassers

Water extinguishers

These water extinguishers are used to fight fires of solid, ember-forming substances, i.e. they are the ideal solution for incipient fires of fire class A.

Water is considered to be the oldest extinguishing agent known to mankind. Its extinguishing effect is based on cooling. In this process, the thermal reaction conditions are hindered so that the further transformation of flammable substances and the supply of combustible gases and vapours is prevented.
Nowadays, its effectiveness is considerably increased by means of extinguishing additives and the formation of bacteria and algae is prevented.
An extinguisher with 6 litres of extinguishing agent naturally weighs quite a bit. The larger the unit, the more important it is to have a comfortable carrying handle. At Jockel, you can choose between the universal round handle and the classic handle. By the way, to make the extinguisher as light as possible, we have also paid attention to the weight of each individual part.

Classic/Universal-Linie

Rechargeable extinguisher JX series

  • Release via impact bonnet: Simply pull the pull-securing device and press down the impact bonnet.
  • Convenient extinguishing agent dosing via extinguishing pistol
  • Ergonomic carrying handles: available with Jockel standard handle Classic or with round handle Universal
  • Pull safety mechanism against inadvertent release
  • Weather and UV-resistant individual parts
  • Economical maintenance due to standardised spare parts (Jockel modular system)
  • Large container opening for easy refilling
  • Base ring and wall bracket included

System-Linie

Lever-charge extinguisher

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Weather and UV-resistant individual parts
  • Economical maintenance due to standardised spare parts (Jockel modular system)
  • Large container opening for easy refilling
  • Base ring and wall bracket included

Standard-Linie

Permanent pressure extinguisher

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Refillable
  • Weather and UV-resistant individual parts
  • Base ring and wall bracket included

Water mist extinguishers

Water is the most environmentally friendly extinguishing agent in firefighting.
Jockel water mist extinguishers take the extinguishing effectiveness of the environmentally friendly extinguishing agent water to a new level.

Jockel water mist extinguishers are suitable for fire classes A (embers and solids) and F (cooking fat/oil).

In addition, the water mist extinguishers have been successfully tested in fire class B (liquid substances and substances that become liquid). Due to this extinguishing performance, the environmentally friendly water mist extinguishers can be optimally used depending on the area of application.
We have succeeded in increasing the extinguishing effectiveness of water through the innovative patented nebulisation technology. Due to the perfectly coordinated combination and the interaction of nozzle and pressure, water gains maximum efficiency.

The special water mist nozzle atomises the finest water droplets (Ø 55 μm) into a fine mist, which greatly increases the surface area of the extinguishing agent. This reduction of the droplet size increases the total water surface so that it can extract the heat from the source of the fire much faster.

Sprayed on as a water mist, the fine drops evaporate abruptly in the event of a fire. In the process, the oxygen that is absolutely necessary for the fire to continue burning is displaced over a large area from the ambient air. The fire is suffocated.

Thanks to the exorbitant number of tiny water particles, the water mist expands over a large surface and reduces the temperature considerably - an enormous amount of heat energy (approx. 3.36 MJ per litre at 20°C) is extracted from the fire. By sealing off the heat radiation, a possible spread of fire is also prevented.

Water mist fire extinguisher

Charge extinguisher

  • High extinguishing comfort thanks to an extinguishing pistol that can be placed down
  • Proven charging technology for long service life
  • Telesto Technology inside
  • Environmentally friendly alternative to AFFF foam extinguishing agents
  • Frost-proof variants available
  • Universal application possibilities in fire classes A, B and F
  • „Made in Germany“

Gel fire extinguisher: active, preventive, effective for lithium-ion battery fires

Gel extinguishers

Gel is an effective extinguishing agent that has a fast, preventive and cooling effect.
The specially developed gel extinguishing agent is particularly suitable for problem fires in lithium-ion batteries as it practically permanently wraps itself around the entire battery (or the burnt material) and remains adherent even on horizontal, vertical, slippery as well as smooth surfaces.

In addition, the gel layer on the fire material provides an oxygen seal - this lasting cooling and smothering of the flames causes a rapid reduction of the fire ambient temperature.

As gel binds the water in the extinguishing agent, no sudden evaporation occurs during application. Hot and toxic fire gases are knocked down and soot particles are bound. Due to the preventive effect, valuable time can also be gained by coating the surrounding fire load that is not yet burning with gel - this prevents it from spreading in the event of a fire.

Due to its thermal nature (heat absorption), gel can transfer its cooling effect to the battery over a long period of time and significantly reduce its temperature - and that with little use of extinguishing agent - which also unmistakably reduces the damage of extinguishing agent retention.
When using gel, not only can the spread or direct spread of flames to surrounding property be better prevented in the event of a fire, especially when storing, temporarily storing or transporting lithium-ion batteries, but above all it can protect people.
Gel extinguishers offer an effective solution especially for industries in which lithium-ion batteries are used, but are also ideally suited for many other areas.

G 6 SDJ Gel

Permanent pressure extinguisher impact button fitting

  • Nickel-plated brass impact button fitting with test and filling connection
  • M 74
  • Refillable
  • High reliability of components
  • Containers and fittings significantly exceed the requirements of EN 3 in the area of bursting pressure
  • Containers are individually pressure-tested
  • Break resistance
  • Pressure resistance
  • Temperature and chemical resistance of fittings confirmed in long-term tests
  • Weather and UV-resistant individual parts
  • Convenient, adjustable high-performance extinguishing pistol for convenient dosage of the extinguishing agent
  • High-quality, rotatable hose
  • Elastic and dimensionally stable with fabric inserts
  • Including robust base ring made of impact-resistant plastic in the standard version
  • Protects the base of the container and ensures a secure stand, an arrow indicates the mounting direction

G 6 HDJ Gel

Permanent pressure extinguisher pressure lever fitting

  • Nickel-plated brass pressure lever fitting with test and filling connection
  • M 74
  • Refillable
  • High reliability of components
  • Containers and fittings significantly exceed the requirements of EN 3 in the area of bursting pressure
  • Containers are individually pressure-tested
  • Break resistance
  • Pressure resistance
  • Temperature and chemical resistance of fittings confirmed in long-term tests
  • Weather and UV-resistant individual parts
  • Convenient, adjustable high-performance extinguishing pistol for convenient dosage of the extinguishing agent
  • High-quality, rotatable hose
  • Elastic and dimensionally stable with fabric inserts
  • Including robust base ring made of impact-resistant plastic in the standard version
  • Protects the base of the container and ensures a secure stand, an arrow indicates the mounting direction

G50J HW EXT

Charge extinguisher, mobile

  • Ideal for lithium-ion battery fires
  • Brass rotary valve with safety vent
  • M 74
  • Refillable
  • High reliability of components
  • Containers and fittings significantly exceed the requirements of EN 3 in the area of bursting pressure
  • Containers are individually pressure-tested
  • Break resistance
  • Pressure resistance
  • Temperature and chemical resistance of fittings confirmed in long-term tests
  • Weather and UV-resistant individual parts
  • Separately replaceable CO2 propellant gas cylinder
  • Convenient, adjustable high-performance extinguishing pistol for convenient dosage of the extinguishing agent
  • High-quality, rotatable hose
  • Elastic and dimensionally stable with fabric inserts
  • optionally in 5 or 10 m length

Green generation (PDF)

Beyond the fire extinguishersISO 14001:2015 certified company

Economical use of paper, energy-conscious production and reduced use of packaging materials are something we consider a given. We also try to apply these standards to our products. In addition to fire protection requirements for greater extinguishing performance, environmental compatibility and disposal are also central focal points of the 21st century.
