Grease fire extinguisher

Special solutions for kitchen fires

Grease fire extinguisher

Anyone who has ever stood in front of a burning pan or deep fryer knows the speed with which cooking oil and fat can self-ignite. Now the wrong extinguishing agent, such as water, and the so-called fat explosion occurs. Since burning fat or oil is already several hundred degrees Celsius hot, added water evaporates abruptly. This explosive evaporation causes the burning fat to be thrown out of the container. For successfully fighting cooking oil and fat fires (fire class F), Jockel has special devices in its range that can also be used universally in fire classes A and B.

Extinguishing effect

Jockel grease fire extinguishers contain a highly concentrated salt solution that causes saponification when sprayed on burning oil. This suffocates the fire.

Application areas:

Restaurant and snack bars, kitchen and commercial kitchens, grease bakeries, snack bars, etc.

Mini line

Mini permanent pressure extinguisher

This household extinguisher is a real all-rounder. It can be easily stored in the kitchen cupboard and is therefore always within reach when needed.

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Weather and UV-resistant individual parts
  • Universally applicable in fire classes A, B and F
  • Frost-proof up to -30°C
  • Economical maintenance due to standardised spare parts (Jockel modular system)
  • Including foot ring and wall bracket

System line

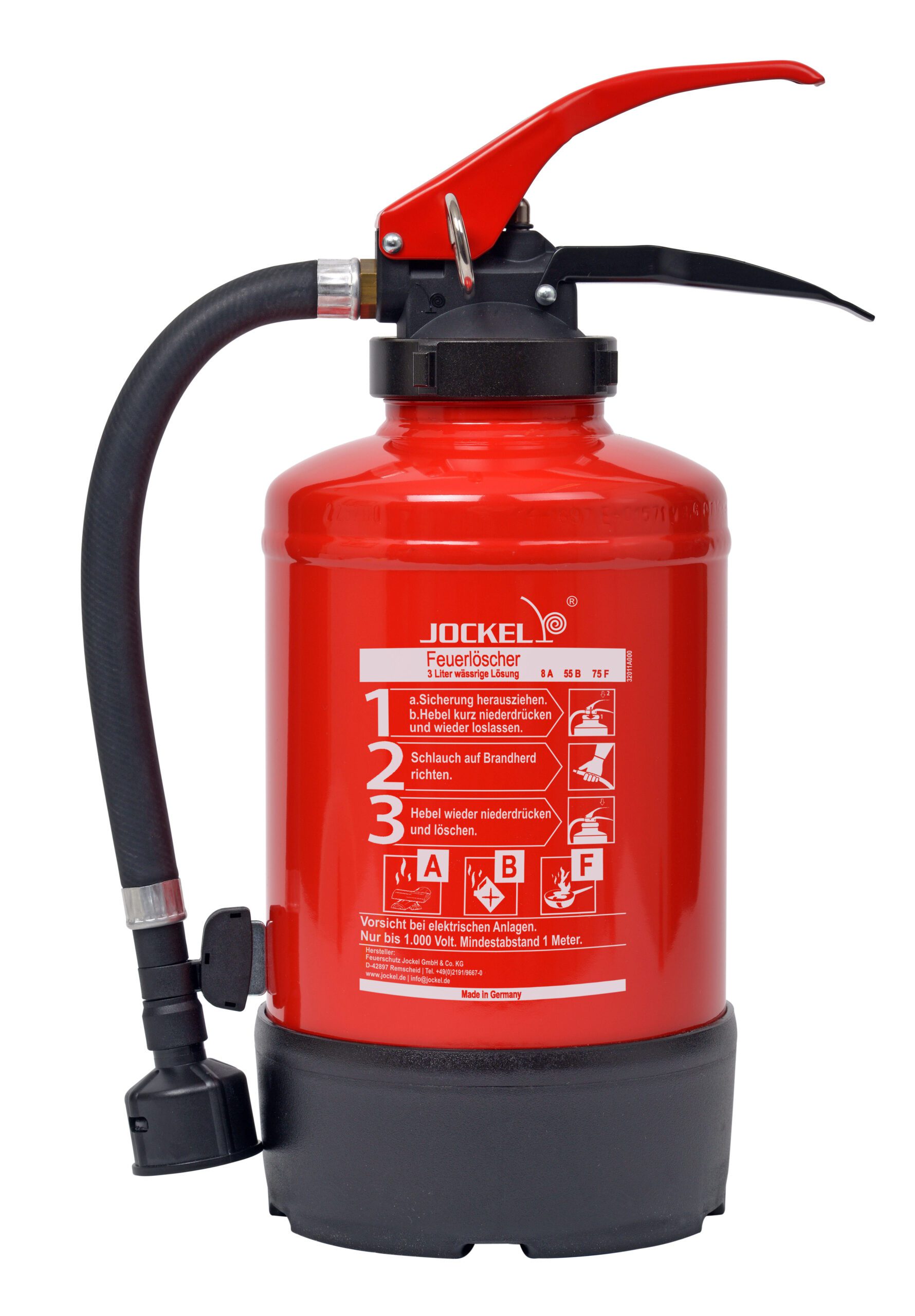

Charging extinguisher

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Weather and UV-resistant individual parts
  • Universally applicable in fire classes A, B and F
  • Frost-proof up to -30°C
  • Economical maintenance due to standardised spare parts (Jockel modular system)
  • Large container opening for easy refilling
  • Including foot ring and wall bracket

Classic / Universal line

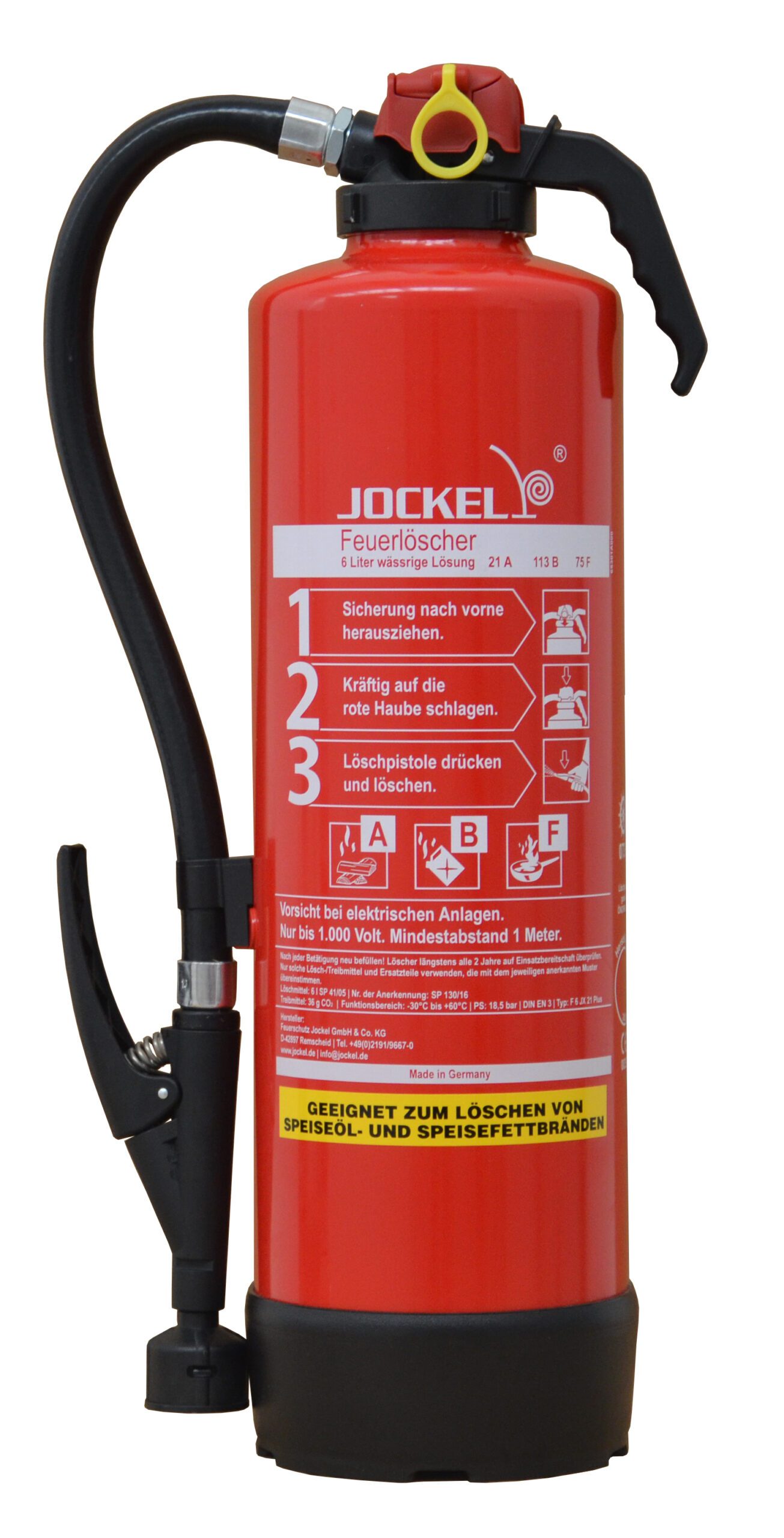

Rechargeable extinguisher JX series

  • Release via impact button: Simply pull the pull-securing device and press down the impact button.
  • Convenient extinguishing agent dosing via extinguishing pistol
  • Ergonomic carrying handles: available with Jockel standard handle Classic or with round handle Universal
  • Pull safety mechanism against inadvertent release
  • Frost-proof up to -30°C
  • Weather and UV-resistant individual parts
  • Economical maintenance due to standardised spare parts (Jockel modular system)
  • Large container opening for easy refilling
  • Including foot ring and wall bracket

Standard Line

Mini permanent pressure extinguisher

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Refillable
  • Frost-proof up to -30°C
  • Weather and UV-resistant individual parts
    Including foot ring and wall bracket

Standard Line

Permanent pressure extinguisher

  • Triggering via lever fitting: pull pull safety catch, press down lever
  • Extinguishing agent dosing via adjustable lever fitting
  • Pull safety mechanism against inadvertent release
  • Refillable
  • Weather and UV-resistant individual parts
  • Including foot ring and wall bracket

The Jockel modular system

The design of all Jockel fire extinguishers within a product family is almost identical. Many spare parts can be used for more than one type, e.g. tanks, draught-protection devices, CO2 cartridges. At the same time, only a few maintenance tools are needed. They can be used for several units. Therefore, Jockel fire extinguishers are not only particularly easy to maintain, but also economical.
